Features & applications
Features
- Virtually dust-free drilling – contributes to a safer workspace and improves visibility by capturing fine particles before they spread into the air
- Versatile – suitable for dust collection during drilling and chiseling, including most stop drill bits and HDI/HKD anchor setting tools (additional dust extraction heads may be required)
- Customizable – two dust box sizes are available, allowing you to choose between a compact size or high capacity depending on the job
- M-class dust filter with a robust and durable housing
- Faster repetitive drilling – the dust removal system includes a depth gauge with a ruler so you can easily drill to the required depth every time
Applications
- Virtually dust-free drilling and chiseling using TE 4-22 and TE 6-22 cordless rotary hammers
- Certified for asbestos-related work according to TRGS 519 issued by the German Federal Institute for Occupational Safety and Health (BAUA)
- Complies with OSHA 1926.1153 Table 1 for virtually dust-free drilling using TE 4-22 and TE 6-22 cordless rotary hammers (HEPA filter included as standard)
Product information
.jpg)

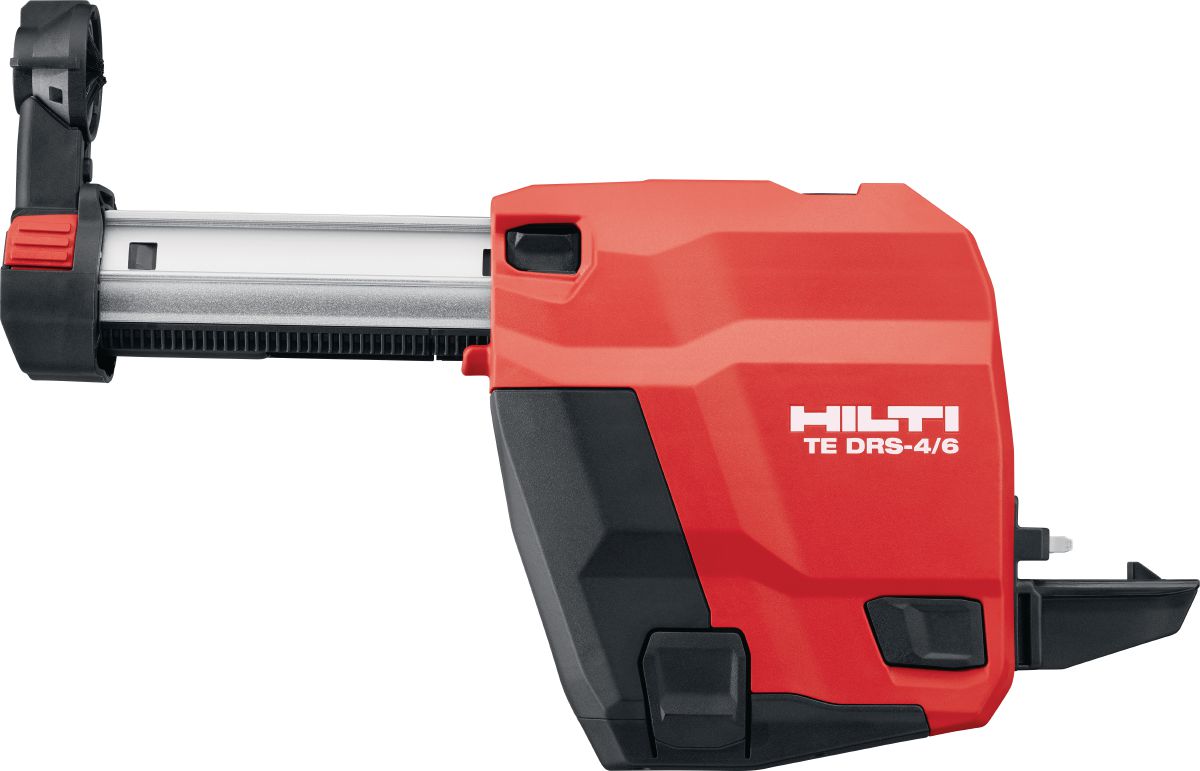

Dust Removal System TE DRS-4/6 box
- Item number: 2268002
- Package quantity: 1
TECHNICAL DATA
- Compatible with : TE 4-22, TE 6-22
- Weight : 1 kg
- Hammer drilling diameter range : 4 - 20 mm
- Maximum drilling depth : 110 mm
- Vacuum cleaner required : No
