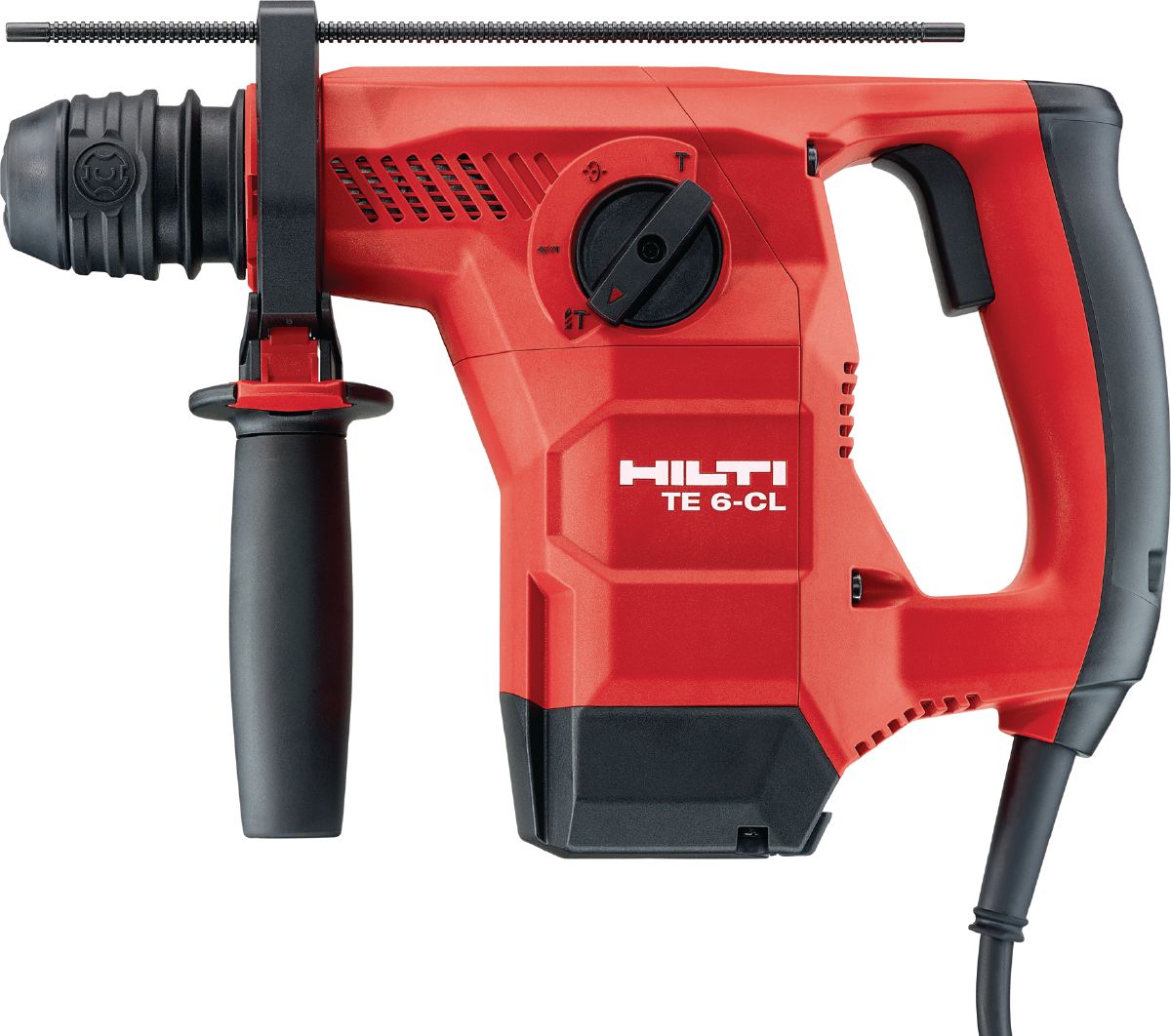

TE 6-CL SDS Plus Rotary Hammer

No items found.

Features & applications

Features

Built for speed and long-term durability – redesigned to deliver maximum drilling performance from our most robust and longest-lasting rotary hammer

‍

Applications

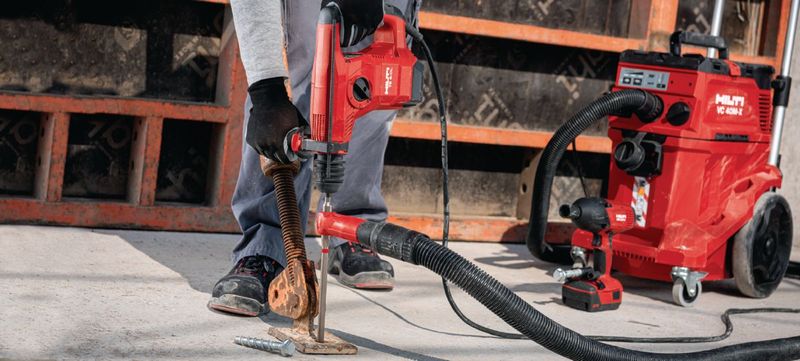

Drilling and hammer drilling in concrete, masonry, and stone
Drilling anchor holes and setting formwork
Chipping concrete and removing slag
Chasing channels in concrete and masonry
Precision chiseling in masonry

‍

Product information

Rotary Hammer TE 6-CL 230V in Case

Item number: 2251580
Package quantity: 1

‍

request a demo request a quote contact me

TECHNICAL DATA

‍Weight according to EPTA Procedure 01/2003 : 3.38 kg‍
Optimum hammer drilling diameter : 6 - 16 mm‍
Single impact energy : 2.3 J‍
Operating modes : Hammer drilling, Drilling, Chiseling, Chisel positioning‍
Hammer drilling diameter range : 4 - 28 mm‍
Hammer drilling RPM : 960 rpm‍
Full hammering frequency : 4680 impacts per minute‍
Performance features : Chiseling, Depth gauge, Reverse mode, Removable chuck‍
Triaxial vibration value for hammer drilling in concrete (ah,HD) : 17.3 m/s² ¹‍
Triaxial vibration for concrete chiseling : 10.1 m/s² ²‍
A-weighted emission sound pressure level : 92 dB (A) ³‍
Rated power input : 890 W‍
Dimensions (L x W x H) : 325 x 93 x 221 mm

‍

Documents

TE 6-CL Operating Instructions

VideoS

Hilti TE 6-CL Rotary Hammer - How to Unlock Full Drilling Potential
